SMPS
MODEL NO: NHP-50 - Download PDF

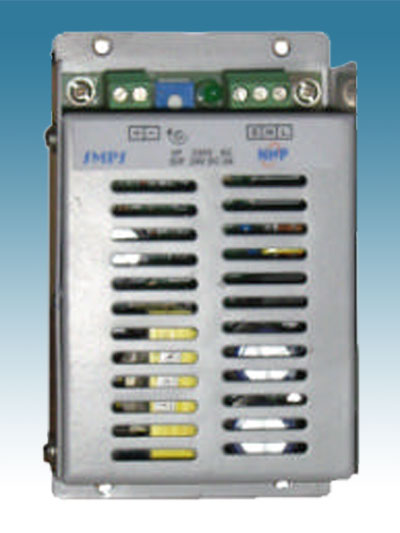

INDUSTRIAL GRADE DIN RAIL MOUNTED MAINS OPERATED SWITCH Click on Image to Enlarge
SPECIFICATIONS Input Voltage Range AC 160-290V AC Input Voltage Range DC 200-425 V DC Input Frequency 40-60HZ Output voltage adjustment +-10% Inrush Current 30 Amps Efficiency @ full load & 230 V AC Input > 85% Hold-up Time 20 msec Operating Temperature 0 TO 50 DEG C Leakage current <2 mA at 230 vac Line Regulation <1% Load regulation <1% Ripple and noise 150 mv p-p Protections Input under /over voltage
Output overload / short circuit
Output over voltage
Thermal overload/over temperatureVibration 10-500 Hz 2G 10 min/1cycle 60 mins each along XYZ axis Isolation between: Input & Output 2000V AC Input & Earth 1500V AC Output & Earth 1500V AC Dimensions: L*B*H 120*70*45mm Mounting Din rail mounting / PANEL Weight 300gms
VOLTAGE (volts) MAX CURRENT ( amps) RIPPLE P-P mv 5 V 6 AMPS 80 MV 12 v 3 AMPS 120 MV 15 V 3 AMPS 150 MV 24 V 2 AMPS 150 MV 36 V 1.5 AMPS 200 MV 48 V 1 AMPS 200 MV
